Format Indicators

Three ways to bring up "Format Indicator" panel:

  1. Right click a chart, then choose An Format Indicator

  2. Click Toolbar > "An" icon

  3. Click Menu bar > Format > Format Indicator – Global

Format indicatores

Format Indicators – Global, it means as soon as this setup, it will take over as your custom default and show next time after you start the software.

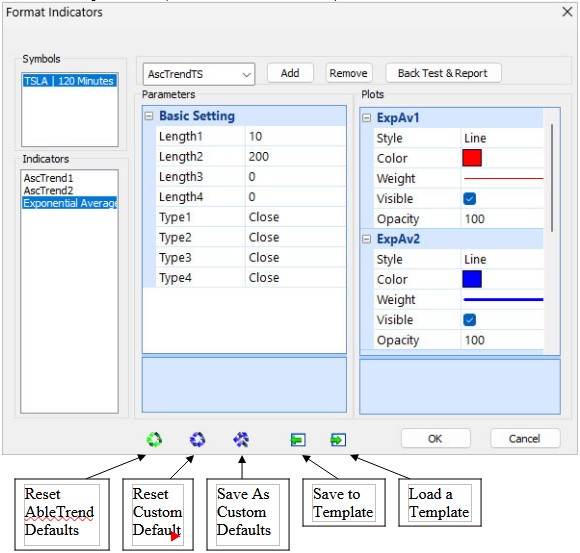

See one example below: (Each indicator is different)

Format indicatores

Color Setup

Color setup

Weight Setup

Weight setup

You may setup :

  1. Basic Setting – Input Parameters

  2. Plot – Define Style (line, points, cross etc.), Color, Weight, Visible (show or not), Opacity (color varies). Click each item, and the drop down choices will show up.

  3. You may click “Save As Custom Defaults”, then from next time open the software, it will accept all of you custom default settings.

  4. You may save all the indicators here as a group which we call “Save to Template”, and bring them up by “Load a Template” to new chart quickly.
